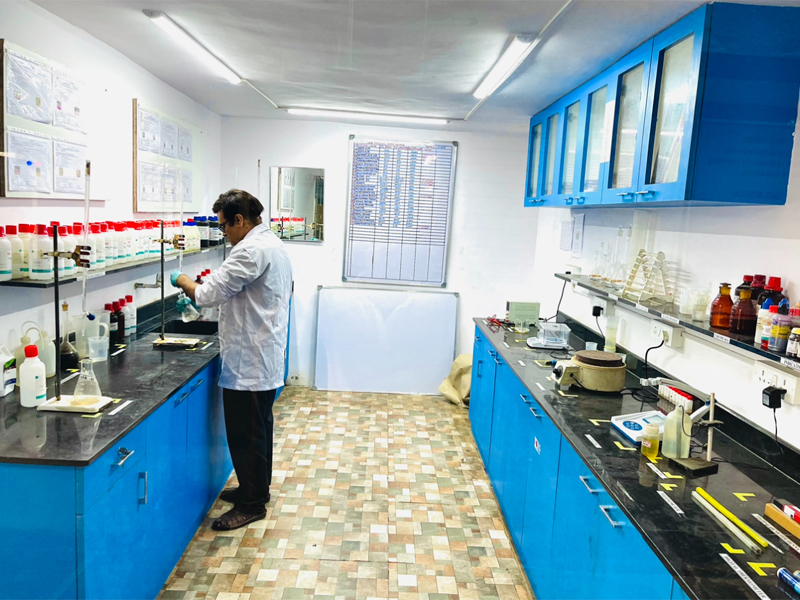

• Tank Analysis with Volumetric Analysis
• Rinse Water Control (pH, conductivity and TDS)
• Weight Loss "ASTM B 137, ISO 2106"
• Coating Thickness "ASTM B 244 and with micrometer"

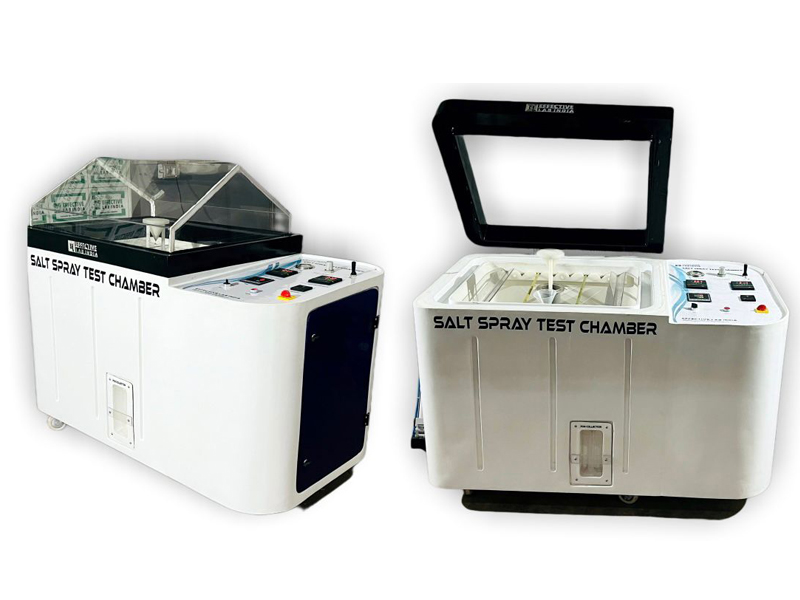

• Corrosion Resistance Test "ASTM B 117, BS EN ISO 9227"
• Abrasion Resistance Test "ASTM D4060"
• Etching and Abrasion Resistance "According to customer needs"
• Paint Adhesion and Wet Adhesion Tests "FED-STD-141"

• Viscosity Calculations for Mixture Paint "According to customer needs"
• Copper Sulphate Test "MIL-STD-753, AMS 2700"
• Paints and Varnishes, Bend Test "ISO 6860"
• Coating thickness measurements of Gold, Silver and layered coatings with X-Ray Device
• Providing visual control of raw and coated parts with digital camera and visual Stereo Microscope
• Solution Analysis In Support of AC7108

• Testing Performed Internally In Support of the Chemical Process Accreditation
• Salt Spray Testing In Support of AC7108
• Adhesion Testing (Adhesion Tape Testing) In Support of AC7108
• Coating Weight Testing In Support of AC7108
• Conductivity Testing In Support of AC7108
• Coating Thickness Measurement In Support of AC7108
• Copper Testing In Support of AC7108

The main features of this system included:

• Fully automated square loop indexing system
• HMI controller
• Fully online oven with PLC integrated software
• Single pass thru ambient air cooling section

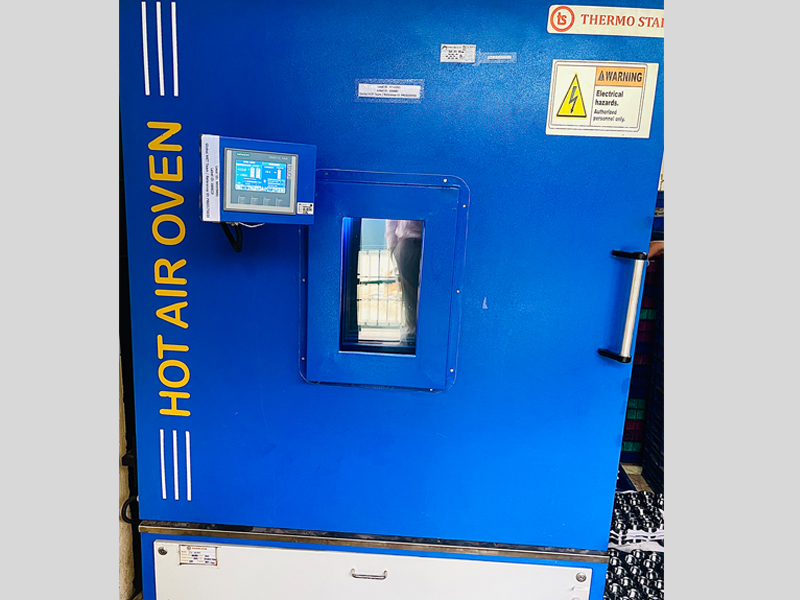

Remove the Hydrogen infused during the cleaning and plating process.

Exposure to hydrogen causes various metals, most importantly steel, to become brittle and crack. This can cause a decrease in the metal's tensile strength. Typically for high strength metal parts, the Hydrogen Embrittlement Relief Oven removes the Hydrogen infused during the cleaning and plating process.

The Hydrogen Embrittlement Relief Oven is available in either a Batch Oven or Continuous Conveyor configuration. In the continuous process, batched parts travel through the heating chamber in individual bucket carriers so that different type parts remain separated. Pneumatic vibration is incorporated at the off load station to ensure all parts are discharged from the bucket.
